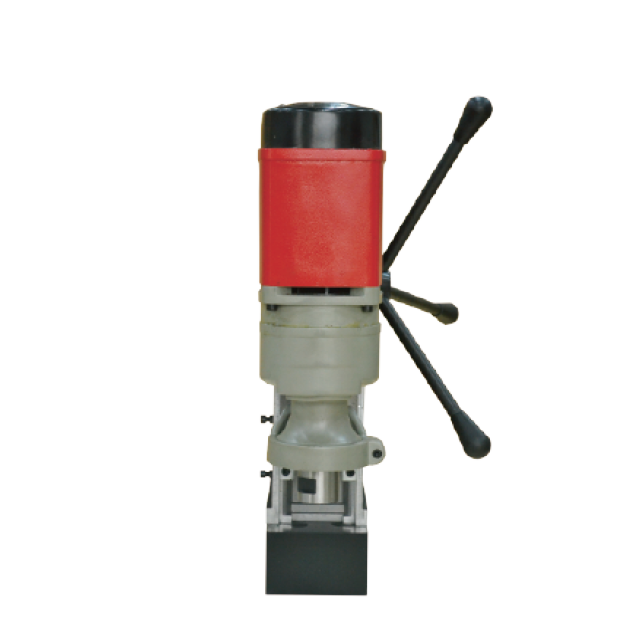

Magnetic Core Drill

Strong adhesion and reliable safety
All die-cast magnesium alloy frame
Huge power motor
High magnet force
Wear-resistant fence plate

TECHNICAL PARAMETER

	Twist drill dia(mm)	Rated Voltage(v)	Rated Frequency(Hz)	Rated Input Power(w)	Max attraction(N)	No-load Speed(rpm)	Cutting depth(mm)	Morse taper	Stroke(mm)	Net/Gross Weight(kgs)	Packing Weight(cm)
xinyu-32	32	380~	50-60	1900	15000	150	60	MT4	210	44/52	59.52351
xinyu-38	38	380~	50-60	2100	15500	135	65	MT4	220	44.5/52.5	59.52351
xinyu-49	49	380~	50-60	2300	16500	120	70	MT4	230	45/53	59.52360
