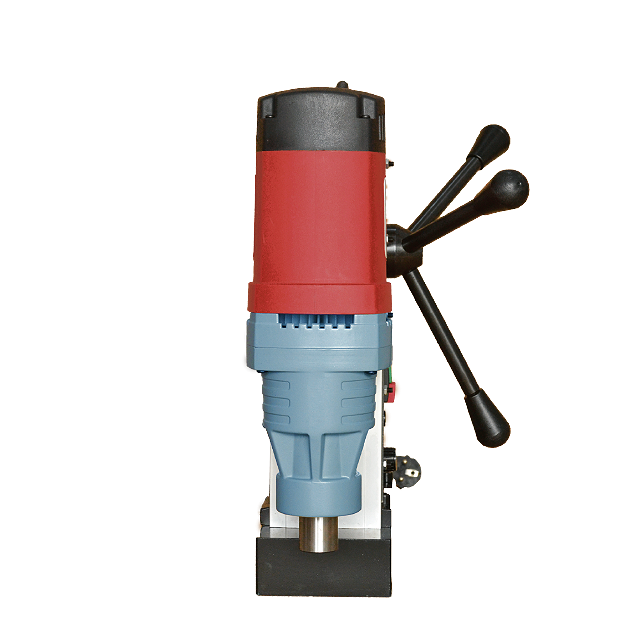

Magnetic Core Drill

Humanized handle design
All die-cast magnesium alloy frame in light weight
High magnet force

TECHNICAL PARAMETER

	Core drill dia(MM)	Twist drill dia(mm)	Rated Voltage(v)	Rated Frequency(Hz)	Rated Input Power(w)	Max attraction(N)	No-load Speed(rpm)	Cutting depth(mm)	Morse taper	Stroke(mm)	Net/Gross Weight(kgs)	Packing Weight(cm)
xinyu-28	60	28	110/220~	50-60	1680	17800	340	50	MT3	200	18.5/20.5	44.516.534.5
xinyu-28E	60	28	110/220~	50-60	1680	17800	100-340	50	MT3	200	19/21	44.516.534.5
