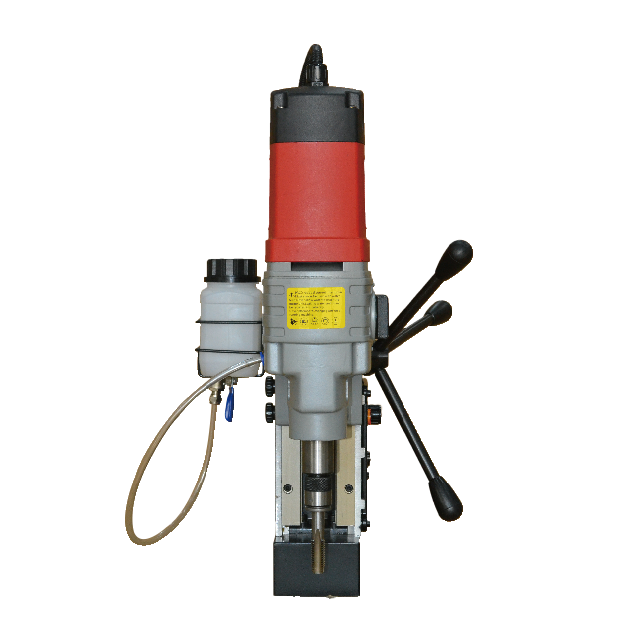

Magnetic Core Drill

Hosts gearbox fixed with high accuracy
All die-cast magnesium alloy frame in light weight
Strong drilling capacity and high efficiency
High magnet force

TECHNICAL PARAMETER

	Core drill dia(mm)	Twist drill dia(mm)	Tapping drill dia(mm)	Rated Voltage(v)	Rated Frequency(Hz)	Rated Input Power(w)	Max attraction(N)	No-load Speed(rpm)	Cutting depth(mm)	Morse taper	Stroke(mm)	Net/Gross Weight(kgs)	Packing Weight(cm)
xinyu-300/2RLO	35	16	M14	110/220~	50-60	1520	14800	100-250/180-450	30	MT2	220	14/17	581838
xinyu-400/2RLO	45	19	M16	110/220~	50-60	1650	15600	90-225/160-405	35	MT2	230	15/18	581838
